Adams Rite 2190-301-101 Dual Force Interconnected Deadbolt/Deadlatch w/ Trim Set - Curve Lever, No Strike, 1-1/8" Backset

Adams Rite 2190-301 Dual Force Interconnected Lock, 1-1/8" Backset, Less Strike, Aluminum Faceplate, 01 Curve Lever Trim, Cylinder sold separately

The 2190 Series Interconnected Deadbolt/Deadlatch provides access control and security for narrow stile aluminum (2190). Deadlatch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting.

Function
The Dual Force combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt and deadlatch from either side. The exterior lever retracts the latch only. With the deadbolt projected, a simple turn of the inside lever retracts both the latch and deadbolt simultaneously, providing single-motion, panic-proof exiting. The Dual Force is available with electrified trim set for easy integration into an existing access control system. Standard and electrified trim sets are for out-swinging doors only; low profile trim set designed for in-swinging doors only.

Features

Cylinder Backset: 1-1/8" [28.6 mm] or 1-1/2" [38.1 mm] only

Strike: No Strike

Faceplate Finish: Clear Anodized

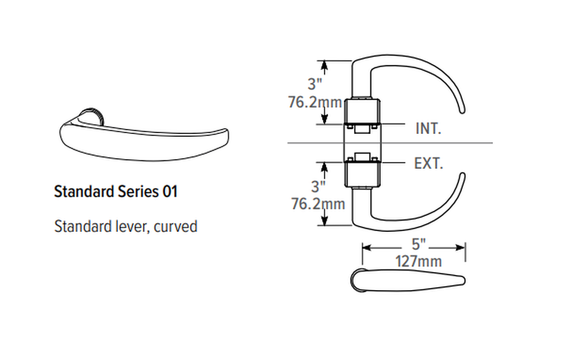

Trim: Trim Set with Curve Lever

Bolt:
Latchbolt: 5/8" [15.9 mm] throw of solid brass. Easily reversible using only a screwdriver.
Deadbolt: 1" [25.4 mm] throw of stainless steel.

Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latchbolt to prevent “loiding” or case-knife entry.

Faceplate: Includes faceplate system that adapts to flat, radius, or beveled door edge.
2190: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Radius with weatherseal faceplate available separately.

Inter Connection: Field-selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch. Consult local authority having jurisdiction (AHJ) for guidance in code compliance. 1-3/4" [44.5 mm] minimum door thickness required.
• 2190 retrofits to existing MS1850S Deadlock or 4500 and 4900 Deadlatch of the same backset.

Operation
Key or thumbturn projects or retracts deadbolt or deadlatch. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder, available separately. Lock accepts cylinder from either or both sides.

Inside lever retracts both deadbolt and deadlatch when configured with interconnect feature. Outside lever retracts latch only. Latch holdback feature activated or deactivated by turning key to retract latch. Sliding holdback button on faceplate down will hold back latch and sliding up will release. The 2190 Series Interconnected Deadbolt/Deadlatch are designed to operate with the uniquely designed strike plate that comes standard in the package from the factory.

Model: Adams Rite 2190-301-101-32D, 2190-301-101-10B
