Accentra (Yale) AUYPL02 Privacy Status Indicator Lock w/ Augusta Lever

Accentra (Yale) AUYPL02 Grade 1 Privacy Cylindrical Lock, Non-Keyed, Augusta Lever, Rose with Icons Only Indicator, Green/Red, Satin Chrome Finish, Non-Handed

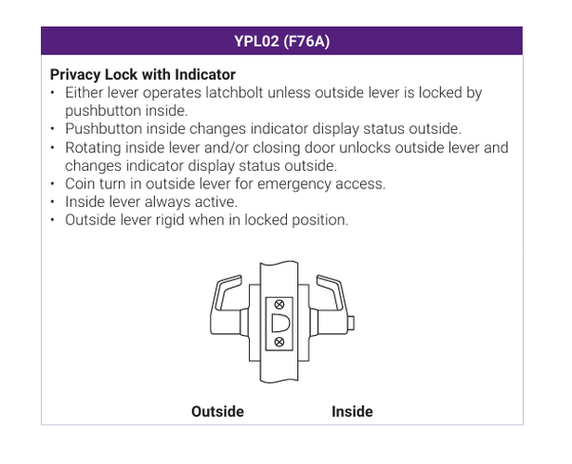

Function: Privacy Lock with Indicator - F76A
• Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
• Pushbutton inside changes indicator display status outside.
• Rotating inside lever and/or closing door unlocks outside lever and changes indicator display status outside.
• Coin turn in outside lever for emergency access.
• Inside lever always active.
• Outside lever rigid when in locked position.

Features
• Red or Green window display with padlock icon for visual door status
• Cylindrical lock construction for durability and longevity in high use applications
• Patent pending design
• Privacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed down
• One motion for egress
• Coin turn for emergency access
• Through-bolted for robust operation
• Ideal for retrofit
• Lever returns to within 1/2" of door face

Specifications
Door Prep: ANSI/BHMA A156.115

Door Thickness: 1-3/4" (44mm) standard

Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional

Handing: Non-handed

Latchbolt: Plain, 2-3/4" (70mm) backset x 1-1/8" (29mm) square corner front with 1/2" (13mm) throw
standard, 2-3/8" (60mm) x 1" (25mm) optional

Strike: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center

ANSI/BHMA: 2-3/4" Backset: Certified Grade 1, ANSI/BHMA A156.2, Series 4000
2-3/8" Backset: Certified Grade 2, ANSI/BHMA A156.2, Series 4000

UL/cUL: Listed for 3 hour fire doors

Windstorm: Certified (refer to local codes)

Warranty: 3 years

Applications
• Office buildings
• Restaurants
• Schools
• Hospitals
• Warehouses
• Airports
• Places of Worship
• Convenience Stores
• Gas Stations
• Travel Centers

Model: Accentra AUYPL02 626, AUYPL02 605, AUYPL02 613E, AUYPL02 BSP
