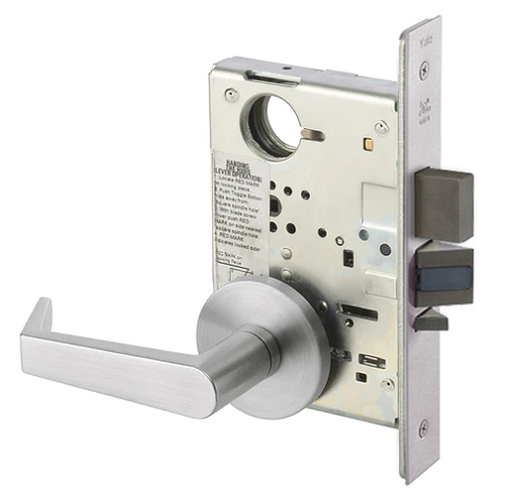

Accentra (Yale) AUR8835FL Exit Mortise Lever Lock, Augusta Style

Accentra (Yale) AUR8835FL Mortise Exit Lock, No Exterior Trim or Cylinder, Augusta Lever

Function: Exit Lock
• Latchbolt retracted by lever inside
• Deadbolt operated by thumbturn inside
• No outside operations
• Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously
• Deadlocking latchbolt
• Not available with E3 or E4 escutcheons

Lever Style: AU - Augusta Lever w/ CO Rose

Features
• UL Cycle above and beyond test completed at 12.3 Million Cycles. Verification ID: V572228
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes

Specifications

Armor Front: 8" x 1-1/4"

Backset: 2-3/4" only

Case: Wrought steel, zinc dichromated

Deadbolt: 1" throw, cast stainless steel

Door Thickness: 1-3/4" standard

Handing: Field reversible

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength

Latchbolt: 3/4" throw, stainless steel onepiece anti-friction

Strike: 1-1/4" (model 2815) curved lip strike standard

Applications
• Offices
• Shopping centers
• Industrial buildings
• Commercial facilities

Model: Accentra  AUR8835FL 626, AUR8835FL 605, AUR8835FL 606, AUR8835FL 612, AUR8835FL 613, AUR8835FL 625, AUR8835FL 630
