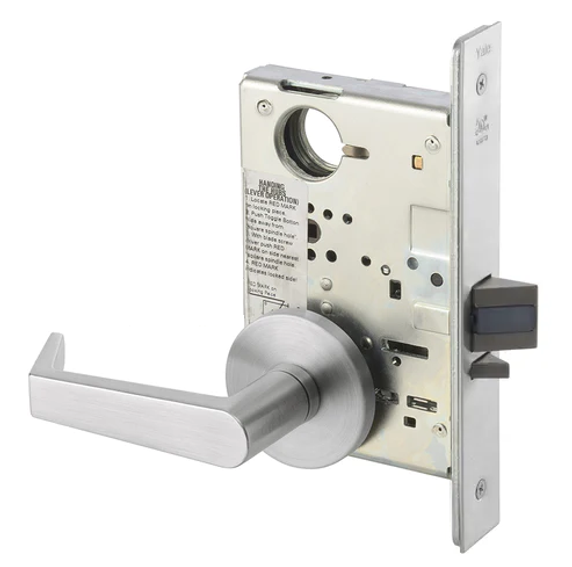

Accentra (Yale) AUR8828FL Exit or Communicating Mortise Lever Lock

Accentra (Yale) AUR8828FL Mortise Exit or Communicating Lock, No Exterior Trim or Cylinder, Augusta Lever

Function: Exit Or Communicating Lock - F31
• For twin communicating or exit doors where one-sided operation is required
• Latchbolt retracted by knob/lever inside at all times
• No outside operations
• Deadlocking latchbolt
• Not available with E3 or E4 escutcheons

Lever Style: AU - Augusta Lever w/ CO Rose

Features
• UL Cycle above and beyond test completed at 12.3 Million Cycles. Verification ID: V572228
• Heavy-duty trim for resistance against damage and vandalism
• Functions available for any industrial or commercial application
• Field adjustable lever handing and latchbolt
• ANSI/BHMA Certified Grade 1 for long-life and durability
• UL/cUL listed for 3 hour fire rated doors
• 10 year mechanical warranty
• Available in a variety of attractive trims and finishes

Specifications

Armor Front: 8" x 1-1/4"

Backset: 2-3/4" only

Case: Wrought steel, zinc dichromated

Deadbolt: 1" throw, cast stainless steel

Door Thickness: 1-3/4" standard

Handing: Field reversible

Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength

Latchbolt: 3/4" throw, stainless steel onepiece anti-friction

Strike: 1-1/4" (model 2815) curved lip strike standard

Applications
• Offices
• Shopping centers
• Industrial buildings
• Commercial facilities

Model: Accentra AUR8828FL 626, AUR8828FL 605, AUR8828FL 606, AUR8828FL 612, AUR8828FL 613, AUR8828FL 625, AUR8828FL 630
