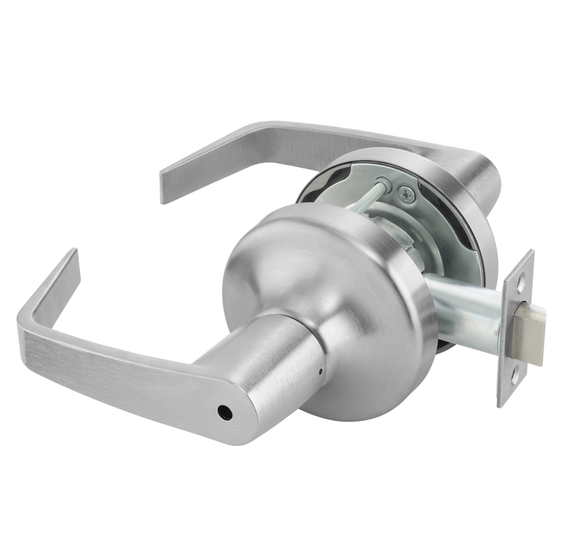

Accentra (Yale) AU4702LN Grade 1 Privacy, Bedroom or Bath Cylindrical Lever Lock

Accentra (Yale) AU4702LN Grade 1 Privacy, Bedroom or Bath Cylindrical Lever Lock, Augusta Lever, Non-Keyed

Function: Privacy, Bedroom or Bath (F76A)
• For lavatory or other privacy doors.
• Either lever operates latchbolt unless outside lever is locked by pushbutton inside.*
• Button automatically releases when inside lever is turned or door is closed.
• Emergency key inserted and turned in hole in outside lever will unlock door from outside. (Emergency key furnished with lockset. P/N 14-5302-1053-048)
• Inside lever always active.

* Lever handles are Free-Wheeling in locked position. Shaded area denotes FreeWheeling lever.

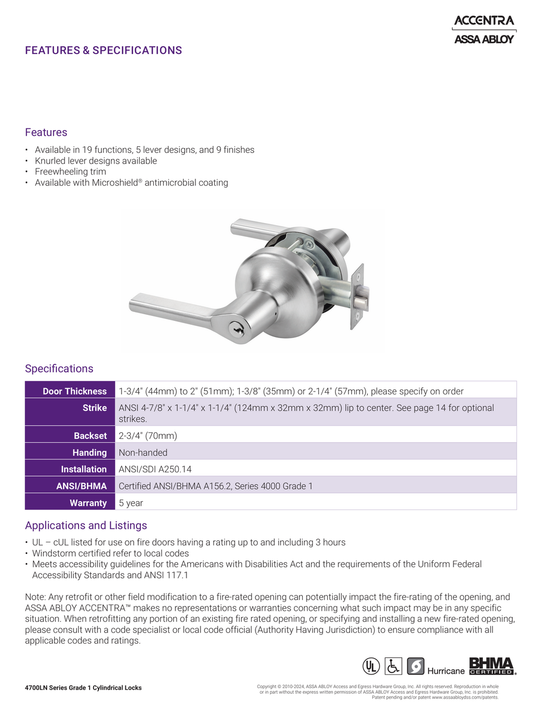

Features
• Available in 19 functions, 5 lever designs, and 9 finishes
• Knurled lever designs available
• Freewheeling trim
• Available with Microshield® antimicrobial coating

Specifications
Door Thickness: 1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm)

Strike: ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center

Backset: 2-3/4" (70mm)

Handing: Non-handed

Installation: ANSI/SDI A250.14

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000 Grade 1

Warranty: 5 years

Applications and Listings
• UL – cUL listed for use on fire doors having a rating up to and including 3 hours
• Windstorm certified refer to local codes
• Meets accessibility guidelines for the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1

Model: Accentra AU4702LN 626, AU4702LN 613E
