Accentra (Yale) AU-NTB623-NR Nextouch Touchscreen Keypad Lock, w/ Cylinder Override

Accentra (Yale) Grade 1 NexTouch Cylindrical Lock with Keypad Trim, Augusta Lever, Cylinder Override, Stand Alone Capacitive Touchscreen, Non-Handed, Generation 3

Great for restrooms, offices, storage closets and more, nexTouch® as a standalone keypad is easy to install, program, and manage access with PIN codes.

Function: With Cylinder Override
• For doors that require mechanical key override.
• Latchbolt retracted by lever outside with valid PIN code; by use of mechanical key, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt.

Features & Benefits:

Choice of capacitive touchscreen or tactile pushbutton keypad: Touchscreen responds to human touch, enabling convenient
entrance or access to programming menu. Pushbutton keypad option also available for more tactile requirements, such as ADA compliance.

Keyless entry and management: Reduces complexity of key system management

PIN code access: Installations are able to be programmed with up to 500 unique PIN codes and a master code for access to programming.

Modular technology: Allows for upgrade to more advanced security technologies with Data-on-Card as requirements change and grow.

Works with cloud-based management software: Single system enables use from anywhere with Internet access from a range of devices, including your computer, smartphone or tablet.

Audit trail: Lifetime audit trail stored within the software to know exactly who has accessed the lock when

Voice-guided programming in 3 languages: Voice-guided prompts make updates straightforward and effortless in English, Spanish or French.

Three (3) volume modes: Playback can be set for normal, low or silent.

Privacy feature with Door Position Switch: By holding the interior lock button down for 1.5 seconds, the exterior keypad is temporarily disabled ensuring complete privacy and no additional entry.

Weather resistant gasket seal: Lock is operational even in outdoor settings, in temperatures ranging from -40°F to 140°F (-40°C to 60°C) at 95% relative humidity

Low battery indicator: Blinking designation signals internal 4 AA alkaline batteries are low.

9V battery power backup feature: With the touch of a 9V battery to the designated area on the front of the lock, your nexTouch® can be powered up for onetime entry.

Hardwire power capable: Can be powered externally using remote 9VDC power supply and plug-in wall transformer.

Keypad lockout feature: Deters tampering by disabling the keypad for a default of 180 seconds after five (5) successive failed attempts.

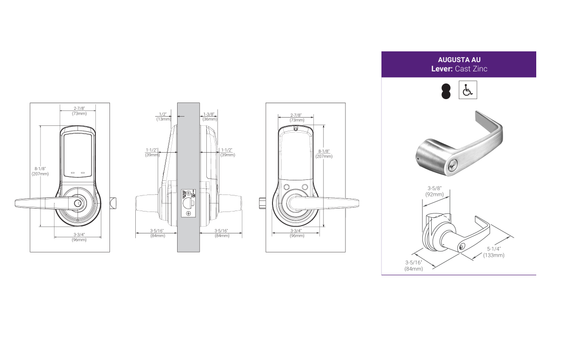

Backset: 2-3/4" (70mm)

Deadlocking Latchbolts: supplied standard with all nexTouch™ locksets Model No. 694 supplied standard with all nexTouch™ locksets. Model No. 694 latchbolt has a 2-1/4" x 1-1/8" front.

Latchbolt: 1/2" (13mm) throw deadlocking latchbolt supplied standard.

Latch Diameter: 1" (25mm)

Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard.

Technical Specifications and Listings

Door Thickness: Standard door thickness is 1-3/4" (44mm).

Handing: Locksets are non-handed.

Certifications and Listings
ADA: The nexTouch Series lever design meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities, all requiring ease of accessibility.

ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000 Grade 1.

Fire Listings: Functions are UL/cUL Fire Listed for use on fire doors having a rating up to and including 3 hours.

FCC: Complies with limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

ISO: 14001 Designed and manufactured under a certified ISO 14001 quality system

Sustainability: EPD and GreenCircle certification.

Warranty: nexTouch® has a three year limited warranty on the mechanical and electrical components, and a one year limited warranty on the finish.

Windstorm: Certified(refer to local codes).

Model: Accentra AU-NTB623-NR 626, AU-NTB623-NR 605, AU-NTB623-NR 606, AU-NTB623-NR 612, AU-NTB623-NR 613E, AU-NTB623-NR 625
