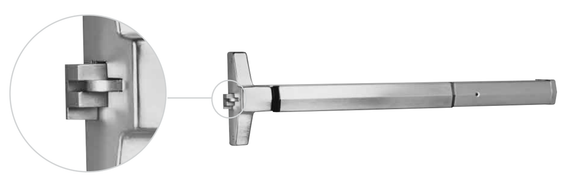

Accentra (Yale) 7250 36 Narrow Stile Square Bolt Rim Exit Device, 36"

Accentra (Yale) 7250 36 Grade 1 Square Bolt Rim Exit Bar, Narrow Stile Pushpad, 36" Device, Hex Key Dogging, Non-Handed

Features
• Patented SquareBolt security deadbolt (Pat. no. 5,605,362) designed for maximum holding power
• Non-handed for easy installation
• Maintains the look of the Yale® 7200 series architectural exit devices, allowing for continuity in both design and finish
• Fully adjustable surface mounted 3/8" diameter roller strike complete with positive locking plate and shims
• Used with narrow stile trim

Applications
• Metal and aluminum doors
• For panic-rated doors only

Specifications

Size: 36 for 30" - 36" (76cm - 91cm) doors

Door Thickness: 1-3/4" (44mm) standard

Minimum Stile Width: 2" (51mm)

Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Deadbolt: Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection

Strike: 759 (Standard)

Fasteners: Machine screws standard for panic hardware

ANSI/BHMA: Certified A156.3, Type 4 or 28, Grade 1

UL/cUL: FVSR/FVSR7 - Panic hardware

Dogging: Hex key dogging supplied standard

Warranty: 5-year limited

Model: Accentra (Yale) 7250 36 630, 7250 48 630
