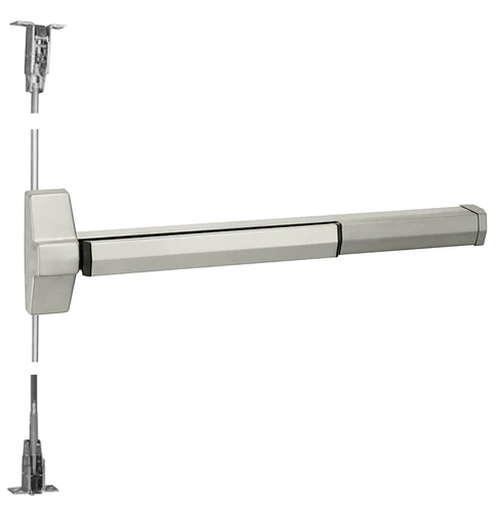

Accentra (Yale) 7120F 36 Fire Rated Concealed Vertical Rod Exit Device, 36"
In Stock
$1,958.61
Price:
$3,374.00
Instant Savings
$1,415.39
Accentra (Yale) 7120F 36 Metal Door Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire Rated Device, 96" Door Height, Less Trim, Less Dogging, Field Reversible
Features
• Designed for wide stile and flush doors
• Handed
• Bottom deadbolt for secure latching
• Fully adjustable roller strike
Applications
• Pairs of doors
• Double egress
• Metal doors only
Specifications
Size: 36 for 30" - 36" (76cm - 91cm) doors
Door Opening Height: Standard door height adjustable to 8' (244cm), with the device centerline at 39-15/16" (101cm) from floor
Door Thickness: 1-3/4" (44mm) standard
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt
Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching
Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing
Vertical Rods: 1/2" (13mm) O.D. telescoping tubular rods
Strike
Top: Roller type 791
Bottom: Flush mounted 790
Fasteners: Sex nuts and bolts supplied standard for fire exit hardware
ANSI/BHMA: Certified A156.3 Type 8, Grade 1
UL/cUL: FGXHX/GXHX7 - Fire exit hardware (F) (8' x 8' pairs, 3 hr.)
Warranty: 5-year limited
Model: Accentra (Yale) 7120F 36 630
